The P12G01 is a DIN-Rail single-phase prepayment meter designed for use in split prepayment metering systems. It ensures secure, reliable energy consumption monitoring and credit charging through communication with a Customer Interface Unit (CIU) via M-BUS. The meter complies with the international STS (Standard Transfer Specification) standard, guaranteeing secure transmission and compatibility with a variety of payment methods.

STS-compliant for secure and interoperable prepayment systems.
Advanced Communication Protocols: Supports DLMS/COSEM for enhanced connectivity and functionality.
Split Type Design: CIU communicates with the meter via M-BUS, enabling outdoor installation of the meter and indoor CIU operation for user convenience.
Built-in relay allows for various load control options.
Supports STS TOKEN-based recharges, with extensible payment options.
Meter parameters can be configured using PC software.
Informative Display offers access to detailed meter information via short codes.
Logs various events for improved system monitoring and analysis.

Secure and Tamper-Resistant: Closed structure with ultrasonic welding prevents unauthorized access.
Environmental Protection: Moisture-proof, waterproof, and dust-proof with PCB protective film.
Construction: Terminal covers use copper materials for corrosion resistance and high conductivity.
DIN Rail Installation: Compact design with 35mm DIN rail locking mechanism.
Weatherproof: Optimized for outdoor installation with durable materials and protective features.

Logout Functionality: Allows users to return unused balance, ensuring flexibility (optional).
Mobile Terminal Cover: Adds convenience and additional protection to meter terminals.

The Customer Interface Unit (CIU) is a user-friendly device designed to communicate with a split keypad prepayment meter. It serves as the primary interface for displaying meter information, enabling user interaction through keypad entry, and providing balance alarms.

Communication: Operates via PLC (Power Line Communication) to connect with the prepayment meter.
Convenient Operation: Installed indoors for easy accessibility and operation by users.
User-Friendly Interface: Equipped with a keypad for input and an LCD display for clear and comprehensive information.
Efficient Query Functions: Allows users to perform basic queries and operations using short codes.
Independent Power Supply: Operates independently of meter balance, ensuring uninterrupted functionality.

Data Processing Capability: Incorporates an advanced Data Process Unit with MCU and memory for reliable performance.
Reliable Power Supply: Features an AC power source with a backup battery pack for continuous operation.
Input/Output Units: Includes an LCD display, keypad, and audible/visual alarms for enhanced usability and notifications.
Communication: Utilizes PLC for seamless and stable communication with the prepayment meter.

The Sanxing S12U16 series single-phase GPRS Smart Meter is used to measure & record the consumption of electrical power in single-phase two-wire LV networks. With advanced functionality on smart energy management & communication capabilities over GSM/GPRS, the meter is aimed to be used for AMI/AMR/AMM & smart grids. The meter consists of two parts, the MCU and CIU communication.

The Meter is to be installed next to the DB inside the apartment
Conforms to international STS and IEC standards
Conforms to DLMS/COSEM communication protocols
Double measurement (Phase & Neutral)
Plug & play GPRS communication module
Multiple events detection and record such as open meter cover, terminal cover, and current release
Maximum demand
Up to 4 tariffs, 100 special days, 12 season table, 8-week types, 8-day tables and 12 entries in a day table
30-Minute interval readings
Prepaid/Postpaid working mode switchable
Remote data collection

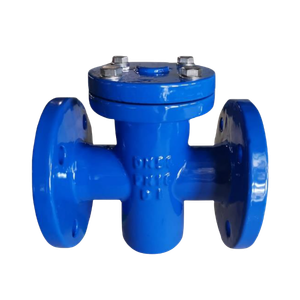

The Basket Strainer is composed of a takeover, director, filter basket, flange, flange cover, and fasteners. As liquid flows into the filter basket, solid impurities are trapped inside, while clean fluid passes through the outlet. For easy maintenance, simply unscrew the bottom valve to release fluid, remove the flange cover, clean the basket, and reinsert it—making upkeep convenient. Our basket strainers can be customized to meet specific usage requirements.

Basket Strainers/Dirt Boxes are ideal for filtering impurities in oil or other liquid pipelines. With a filtration area 2-3 times larger than Y-type or T-type strainers, the basket strainer offers superior precision. The basket-shaped filter gives it the name “Basket Filter.”

Weak corrosive materials in petrochemical production, such as water, ammonia, oil, hydrocarbons
Corrosive materials in chemical production, such as Caustic soda, concentrated dilute sulfuric acid, carbonic acid, acetic acid, ester acid etc
Cryogenic materials in refrigeration such as liquid methane, liquid ammonia, liquid oxygen and various other liquids
Light industrial food, sanitary grade material in pharmaceutical production, such as beer, drinks, dairy products, liquid grain and medical supplies
High efficiency filter with special process

ISO 9001:2015
GB/T19001 – 2016
EN 558:2008+A1:2011 EN 1171:2002
EN 1074-1:2000 EN 1074-2:2000
EN 1074-3:2000 EN 1074-4:2000
EN 1074-5:2001 EN 1074-6:2008
RELATED TO CE DIRECTIVE(S)
97/23/EC (Pressure Equipment)

Nominal Pressure: 1.6MPa
Strength Test Pressure: 24.0 Bar
Working Temperature: ≤ 100°C
Standard: Flange drilled is according to ANSI B16.5 150LB or DIN EN1092 PN16

DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

Face-to-face dimensions according to DIN 3202 F1 / EN558-1 series 1
Flange dimensions according to EN1092
Flange dimensions can be as per BS10 Table D/E, JIS10K, etc.
Nominal pressure PN10/PN16
Working Temperature: 0.1°C – 80°C
Material: Cast Iron

DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

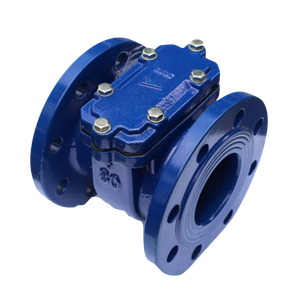

The inline strainer is designed to protect water meters from damage caused by solid impurities in the pipeline, ensuring accurate meter measurement.

Durable Construction: The filter shell is made of ductile iron.
Extended Lifespan: The stainless-steel filter mesh extends the product’s lifespan.
Efficient Filtration: The curved filter mesh increases filtering capacity and circulation while reducing pressure loss.
Easy Maintenance: The hood-shaped filter bottom is easy to clean.

Pressure Loss: 0.025 MPa (regular)
Pressure Rating: 1.0 MPa / 1.6 MPa

The filter must be installed following the water meter standard GB/T 778.2-2007 when used with a water meter.
Choose an installation position that allows for easy installation, disassembly, and maintenance of the filter.
Ensure the arrow indicating water flow direction on the filter aligns with the actual water flow direction during installation.
Before installation, remove stones, sand, linen silk, asphalt, and other debris from the new pipeline.
Regularly disassemble and clean the filter mesh to prevent blockages. Ensure the pipeline pressure is relieved before performing maintenance.
The pipeline pressure must not exceed the maximum working pressure of the filter to avoid shell burst.

DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

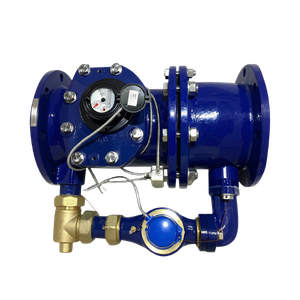

Our Combination Meters are specially designed to measure high flows of cold potable water in pipelines. These meters are equipped with built-in sensors, making them ideal for remote reading transmission systems.

Wide Measuring Range: These meters cover a broad range, from small-caliber water meters (Qmin) to large-caliber water meters (Qmax), ensuring accurate readings.
Dry-Dial Design: These meters prevent the buildup of deposits in the register, ensuring clear and reliable readings over extended periods of use.
Low Head Loss
Low Starting Flow
Simplified Maintenance: Our combination meters have a novel structure that simplifies maintenance, making it easy to keep them in excellent working condition.
Customize your meter with the reed switch option for enhanced functionality.
Ideal for Commercial and Institutional Settings: These meters are particularly suitable for use in commercial, institutional places of assembly, and facilities with fluctuating water usage and flow rates.
AMR Ready.

Water Temperature: Suitable for water temperatures up to 50°C.
Water Pressure: Designed for use in systems with pressures of up to 1.6 MPa.

In the lower zone, from Qmin up to but excluding Qt, the meter’s error is within ±5%.
In the upper zone, from Qt up to and including Qs, the meter’s error is within ±2%.

Our Combination Meters use a smart changeover spring valve to manage water flow efficiently:

At low flow rates, the valve closes, allowing water to pass through the small meter. The usage is recorded on the register accordingly.
As the flow rate increases, pressure on the large meter builds up until it reaches about half the capacity of the bypass meter. At this point, the valve opens, and water flows through both the main and bypass meters. The overall consumption is accurately calculated by combining the main and bypass registers.
When the flow rate decreases, the process reverses, and the valve closes, directing water flow through the small meter.

DN50/15, DN80/20, DN100/20, DN150/40, DN200/50

Horizontal vane wheel, dry-dial cold water meter suitable for irrigation systems.
This meter is ideal for accurate and reliable measurement of unprocessed raw water from sources such as boreholes and rivers.
It can be used for remote reading transmission systems and is equipped with a built-in sensor.

Removable Element Structure: Facilitates easy installation and maintenance.
Dry-Dial, Magnetic Drive: Ensures accurate measurement and long-term reliability.
Large Flow Capacity: Minimizes pressure loss.
Water Hammer and Pollution Resistance: Built to withstand tough conditions.
Vacuum Sealed Register: Keeps the dial free from condensation, ensuring clear readings over a long-term service.
High-Quality Materials: Guarantees steady and reliable performance.
Compliance: Meets international standard ISO 4064.

Water Pressure: ≤ 1Mpa (1.6MPa available on request)
Water Temperature: 0.1℃～40℃

In the Lower Zone: From qmin inclusive up to but excluding qt is ±5%
In the Upper Zone: From qt inclusive up to and including qs is ±2%

DN50, DN65, DN80, DN100, DN150, DN200, DN250, DN300

Precisely measures the volume of water passing through the pipeline.
This type of water meter can be used for a remote reading transmission system and is equipped with a built-in sensor.

Removable Element Design: Simplifies installation and maintenance, with a detachable register that can be removed without disassembling the meter from the pipeline.
Dry-Dial with Magnetic Drive: Ensures sensitive operation and minimal pressure loss.
Vacuum-Sealed Register: Prevents fogging, keeping readings clear over long-term service.
High-Quality Materials: Selected for durability, reliability, and consistent performance.
ISO 4064 Compliance: Meets international standards for technical data.
Water Temperature Range: Suitable for cold water (0.1°C to 50°C) and hot water option available upon request (0.1°C to 90°C).
Water Pressure Capacity: Handles pressure up to 1 MPa (1.6 MPa for special requirements).

In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2% ( ±3% for hot water)

DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

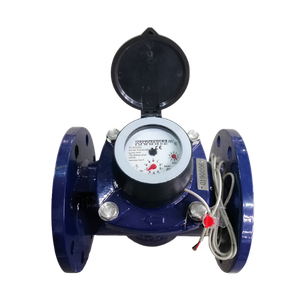

The WP-SDC Plus Turbine Woltman Water Meter is designed for industrial and irrigation applications, measuring water flow from DN50 to DN200. It is suitable for both cold and hot water and complies with Directive 2004/22/EEC and European Standard EN 14154. This meter is ideal for high-demand environments requiring precise water flow measurement.

Magnetic Transmission: Ensures accurate readings and long-term reliability.
Hydraulic Dynamic technology for the turbine’s horizontal orientation.
Double Rectifier: Stabilizes water flow for improved performance and accuracy.
All parts in contact with water are made from Corrosion-Resistant Materials.
Ductile Iron Body: Epoxy-coated inside and out
Rotating Register: Allows easy reading from any position for user convenience.
Super-Dry Register with IP68 Rating: Copper design ensures long-term durability and reliable performance in harsh conditions.
Removable Measuring Mechanism: The internal measuring unit can be easily removed for maintenance without dismantling the entire meter from the pipeline.
Magnetic Field Protection: The meter is not affected by external magnetic fields, ensuring consistent accuracy.
Radio Module Ready: Pre-equipped with an inductive plate for future radio module integration

From Q1 inclusive up to but excluding Q2 is ±5%
From Q2 inclusive up to and including Q4 is ±2%for T30 and ±3% for T50

Can be installed in horizontal, vertical, or inclined positions with the flow direction indicated by the arrow on the meter body.
No Straight Inlet Length Needed: The factory-fitted rectifier eliminates the need for straight inlet length (U0D0 as per OIML R49 and EN 14154).
Pipe Length Requirements: Requires 5 diameters of straight pipe before the meter and 10 diameters after for proper water flow.
Ensure the pipeline is flushed before installation to prevent debris from affecting performance.
The meter must be kept full of water during operation.
It is advisable to install a strainer before the water meter to prevent blockages and ensure accuracy.

DN50, DN65, DN80, DN100, DN125, DN150, DN200

Ultrasonic measuring technology, high accuracy, no moving parts
Optional Split CIU with Dot Matrix LCD for local language display
Prepaid/Postpaid working mode switchable

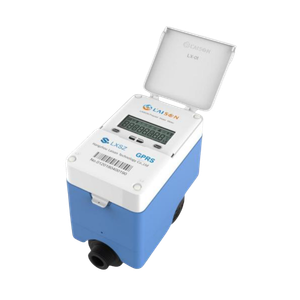

Equipped with integrated GPRS/NB-IoT/LoRa/Sigfox modules for seamless AMR/AMI (Automated Meter Reading/Infrastructure) functionality and remote data collection.
Flexible water purchase at vending points
Multiple event detection, tamper, temperature, dry run, leak detection, hourly consumption data
Interchangeable battery – Lithium-ion type
Communication to CIU 150m distance

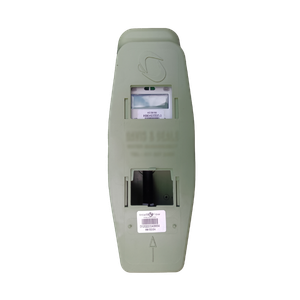

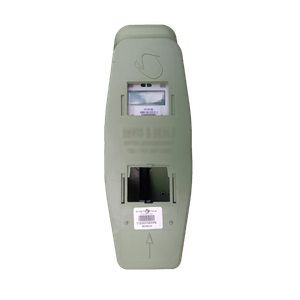

Versatile Setup: Can be installed in a Surface, Wall Mount or Above Ground Box

Prepaid and Postpaid working modes are switchable.
Stores up to 10 years of historical meter data.

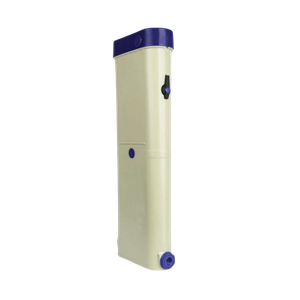

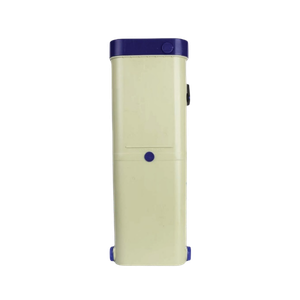

Can be installed in a Surface, Wall Mount or Above Ground Box

OPTION 1: Postpaid Mode – Remote Meter Data Collection

The meter connects to the local GPRS network for bi-directional data transfer with the MDM system, enabling functions like remote meter recharge and automatic data uploads.
The meter can be connected to a local GPRS Network after inserting a SIM

OPTION 2: Prepaid Mode

Remote recharge via GPRS Communication when water is purchased at a Vending Office
or Via IR Pad when the customer uses the IR Pad to input the 20 digit token, via Infrared Comms.

The Laison LoRa Split Type STS Water Meter comprises of two main components:

The Water Meter, available in either Velocity or Volumetric types, both compliant with the STS standard IEC 62055-41 and 62055-51,
A Customer Interface Unit (CIU) that supports RF Wireless Communication and features a Dot Matrix Type LCD, enabling local language support for remote meter recharge and data query.

Prepaid and Postpaid working modes are switchable.
Stores up to 10 years of historical meter data.
Can be installed in a Surface, Wall Mount or Above Ground Box

OPTION 1: STS Prepaid Working Mode:

Meter recharge and data query via CIU.
Multiple Water Purchase Methods: Available through vending points, vendors, and customer self-service POS app.

OPTION 2: Postpaid Working Mode with AMR/ AMI

The meter supports both Walk-by AMR (Automatic Meter Reading) and Fixed Data Concentrator Unit (DCU) for AMI (Advanced Metering Infrastructure) functions for efficient remote meter data collection.

AMR Functions:
- Collection of meter installation location (GIS) information.
- Meter reading task downloads from LAPIS server.
- Meter reading path optimization.
- Automatic meter data collection and upload to the Laison Meter Data Management System (MDM).
- Remote meter parameter checking and valve control.
AMI Functions:
- Automatic meter data upload, including hourly/monthly consumption data, battery voltage, meter alarm events, etc.
- Automatic real-time clock (RTC) calibration.
- Remote meter parameter checking and valve control.

Designed to measure the Volume of Hot Potable Water passing through the pipeline.

Approved to SANS1529 -1: 2019 Class B specifications (SA 1566)
For Horizontal installation.
Clear, easily read, dry dial counter. Reads to 0.0002m‑.
Strainer removeable for maintenance in the field.
Suitable for measuring potable water.
Inlet and Outlet threads compatible with ISO metric sizes.
Dezincification Resistant Brass (DZR)
Less susceptible to damage caused by suspended solids.
Pulse prepared – different settings available. (To be specified)

Water Temperature: ≤ 90°C
Working Water Pressure: ≤ 1.6MPa

Lower Zone (qmin inclusive up to but excluding qt): ±5%
Upper Zone (qt inclusive up to and including qs): ±3%

The meter should be installed in a horizontal position with the register facing upwards.
The pipeline must be flushed before installation.
The meter should remain full of water during operation.

Designed to measure the Volume of Cold Potable Water passing through the pipeline.

Conforms to ISO 4064 standards.
Meets Class B standard for horizontal installation.

External Regulating Device: Facilitates easy adjustments.
Magnetic Drive: Ensures lower transmission resistance.
Magnetic Shield: Protects external magnetic fields.
Evacuated and Sealed Dry Dial Register: Guarantees clear readings.
DN50 Meter Body Options: Available with threaded or flanged ends.

Inclusion of a non-return valve at an additional price for all sizes except for the LXSG-50E model.
This meter type is available for Hot Water up to 90°C.
Add a Reed Switch for Smart Metering.

Water Temperature: ≤ 50°C
Water Pressure: ≤ 1.6MPa

Lower Zone (qmin inclusive up to but excluding qt): ±5%
Upper Zone (qt inclusive up to and including qs): ±2%

The meter should be installed in a horizontal position with the register facing upwards.
The pipeline must be flushed before installation.
The meter should remain full of water during operation.

DN15, DN20, DN25, DN32, DN40, DN50

To be installed in an enclosure such as the Eco Surface Level Box, Wall Mount or Above Ground Box.
Designed for the accurate measurement of cold potable water consumption up to 50°C.
Suitable for residential, commercial, and municipal metering applications.
Can be installed in both horizontal and vertical positions.
Ideal for projects that require remote reading capabilities or smart metering.

MID Approved.
Manufactured using approved drinking water materials and complies with international quality and performance standards.

Multi-jet dry dial measuring principle for high accuracy and long service life.
Lightweight polymer body, approximately 50% lighter than comparable brass meters.
Glass-fibre reinforced polymer housing approved for drinking water applications.
Rotatable register (355°) for easy reading in any installation position.
Dry dial register with shielded magnetic coupling.
Optional IP68 copper-glass register for flood-prone environments (-M-CC).
Protective steel foil register shielding against tampering (-N).
UV-resistant inspection window (-N).
Includes a strainer on the inlet, and an
Optional non-return valve on the outlet.

Water Temperature: ≤ 50°C
Water Pressure: ≤ 1.6MPa (16 Bar)

Designed to measure the Volume of Cold Potable Water passing through the pipeline.

Conforms to ISO 4064 standards.
Meets Class B standard for horizontal installation.

External Regulating Device: Facilitates easy adjustments.
Magnetic Drive: Ensures lower transmission resistance.
Magnetic Shield: Protects external magnetic fields.
Evacuated and Sealed Dry Dial Register: Guarantees clear readings.
DN50 Meter Body Options: Available with threaded or flanged ends.

Inclusion of a non-return valve at an additional price for all sizes except for the LXSG-50E model.
This meter type is available for Hot Water up to 90°C.
Add a Reed Switch for Smart Metering.

Water Temperature: ≤ 50°C
Water Pressure: ≤ 1.6MPa

Lower Zone (qmin inclusive up to but excluding qt): ±5%
Upper Zone (qt inclusive up to and including qs): ±2%

The meter should be installed in a horizontal position with the register facing upwards.
The pipeline must be flushed before installation.
The meter should remain full of water during operation.

DN15, DN20, DN25, DN32, DN40, DN50.

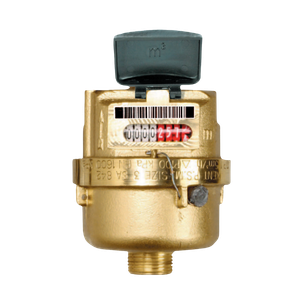

Monitors and records the volume of clean, cold water passing through a pipeline.
Designed for use in residential water metering and billing systems.

High sensitivity for accurate measurement across a wide flow range, particularly at low flow rates
Mechanical transmission for maximum reliability
Corrosion resistant Brass Body
Liquid-sealed or dry dial register for long-lasting, clear readings
Easy-to-read 8-digit counter display with long-term clarity

20 mm meters are fitted with a bowed strainer offering increased mesh area.

20 mm and 25 mm meters are fitted with a spring-loaded non-return valve.
All sizes are pulse prepared.

Water Temperature: ≤ 50°C
Water Pressure: ≤ 1.6 MPa

Approved to SANS 1529-1:2006 Class C specifications.
Inlet and Outlet threads compatible with ISO metric pipe thread sizes.

The meter can be installed in horizontal, vertical or inclined position – A vertical position is recommended
The meter should be installed with the register facing upwards.
The pipeline must be flushed before installation.
The meter should remain full of water during operation.

Brass Meter to be installed using brass tailpieces/ connectors.
No Hemp is to be used during installation.
No soldering or heat is to be applied during installation

Monitors and records the volume of clean, cold water passing through a pipeline.
Designed for use in residential water metering and billing systems.

High sensitivity for accurate measurement across a wide flow range
The meter body is made from a glass-reinforced, UV-stabilized polymer, tested to withstand pressures up to 4800 kPa for the 15mm, and 2400 kPa for the 20mm
Liquid-sealed or dry dial register for long-lasting, clear readings
Easy-to-read 8-digit counter display with long-term clarity
20mm has a bowed strainer with increased mesh area
20mm and 25mm have a spring-loaded non-return valve
Pulse prepared

Optimum accuracy and performance in the horizontal or vertical position.
Water Temperature: ≤ 50°C
Water Pressure: ≤ 1.6 MPa

Approved to SANS 1529-1:2019 Class C specifications.
Inlet and Outlet threads compatible with ISO metric sizes.

Please note that it is a legal requirement that all Polymer bodied meters be installed in an enclosure like a meter box.
The meter can be installed in horizontal or vertical position – A vertical position is recommended
The meter should be installed with the register facing upwards.
The pipeline must be flushed before installation.
The meter should remain full of water during operation.

Plastic Meter to be installed in a box/ enclosure using plastic tailpieces/ connectors.
No Hemp is to be used during installation.
No soldering or heat is to be applied during installation

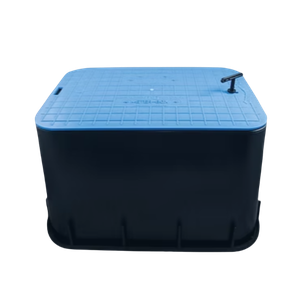

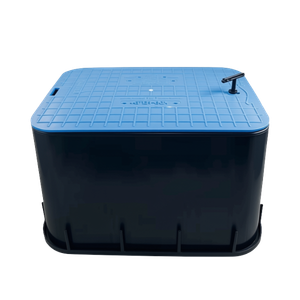

Dimensions: 400mm (l) x 300mm (w) x 305mm (h)
Lid colour options:
- Valves: Blue & Yellow
- Hydrants: Red, Yellow & Blue
- Meters: Blue
- Irrigation: Green

Dimensions: 400mm (l) x 300mm (w) x 150mm (h)
Lid colour options:
- Valves: Blue & Yellow
- Hydrants: Red, Yellow & Blue
- Meters: Blue
- Irrigation: Green

Designed to enclose sluice valves, spindle valves and fire hydrants
NB: Secure with stainless steel bolts and nuts

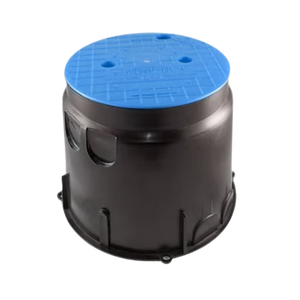

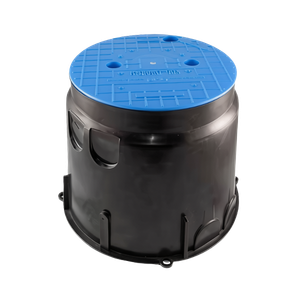

Dimensions: 250mm in diameter and 260mm in height
Lid colour options: Blue and Yellow

Designed for single valves ranging from 15mm to 25mm
Comes with a lid that can be easily removed
Secured with wire cables
Dimensions: 150mm in diameter and 220mm in height
Lid colour options: Blue, Red, White, Yellow, and Green

Designed for use with existing water meter installations without removing or disturbing the existing setup.
Can be installed as an underground valve box or wall-mounted unit, providing flexible installation options.
Ideal for municipal, domestic, and commercial applications requiring secure and regulated water control.

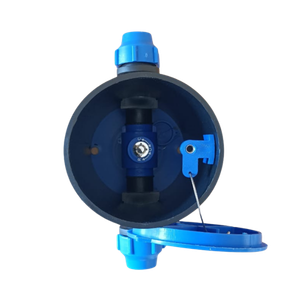

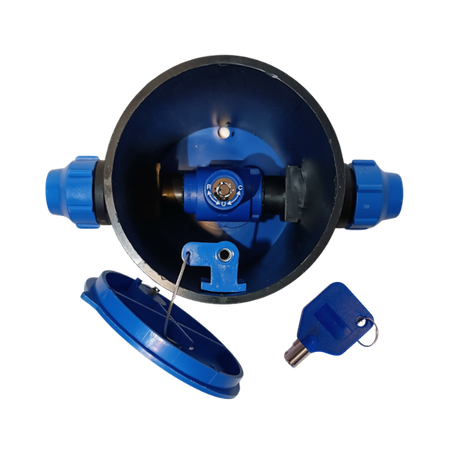

Polypropylene Smart Flow Valve fitted in a round lockable valve box (complete unit).
Box is made of THREMO plastic Polypropylene material, UV Protected and fitted with a 20mm straight (or 45º) push fitting – FxF, 15mm or 20mm inlet and outlet. Internal installation can be fusion welded or BSP treaded, per the council’s requirements.
Colour-coded lids and Base Plates (Blue, Yellow, Red) are available. The different colours indicate the restrictor type, each with a unique lock combination.

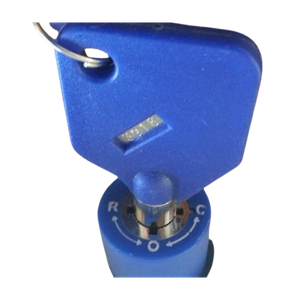

Lockable lid operable only with a special T-key for tamper resistance.
Lid and Base Plate are designed to prevent the ingress of soil.
The base plate has drainage holes for excess storm water disposal.
Direction of flow clearly marked on the lid.
Pressure tested to a minimum of PN16/ 16kPa rated to SABS 16135:2009.

Ø130mm, 175mm (Height) & 260mm (Width – incl. fittings)

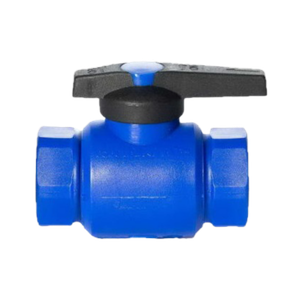

Includes a 15mm 2-Way Ball Valve / Consumer Stop Tap

Includes a 15mm Lockable 3-Way Restrictor Valve (Blue / Yellow / Red) – Open, Closed, or Restrict positions.
Self-cleaning design allows switching between modes with a special Master Key, without valve removal.
Restrict mode supplies 6 kℓ – 20 kℓ/month (or as per council requirements).

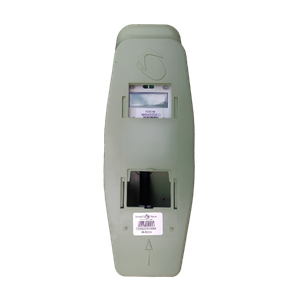

Protective Housing of Water Meters and Components
Designed to fit water meter sizes of 15mm, 20mm and 25mm
Designed for 114mm (l) Plastic Meters, or 165mm (l) Brass Meters
Designed to be installed level with the ground

100% locally assembled.
Polymer 20mm Female BSP Threaded Inlet and Outlet
All meter boxes are fitted with Class C meters include an approved pulse output and a built-in non-return valve. These meters are fully upgradeable to AMI (Automatic Meter Reading).
Equipped with a patented locking system, requiring a special key to open the lid and prevent tampering.
Includes a reading slot for easy viewing
Innovative sliding couplings allow for quick and easy meter replacement without the need for extensive disassembly.
The meter/valve assembly is keyed at the point where it passes through the meter box, ensuring it remains stable and does not rotate during installation.
Fitted with a 3-way polymer trickle-flow ballcock, specifically designed without rising headparts to minimize wear and eliminate leakage risks.
Supplied with NRCS and SANS 1529-1 approved meters for quality and compliance.

Lock-shield for 3-way ballcock.
Plastic Y-Strainer

Length: ± 364mm
Width: ± 190mm
Height (Including the Lid): ± 178mm

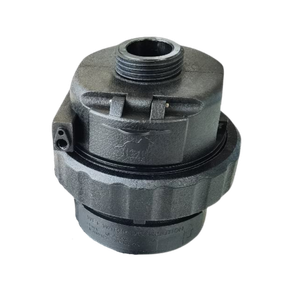

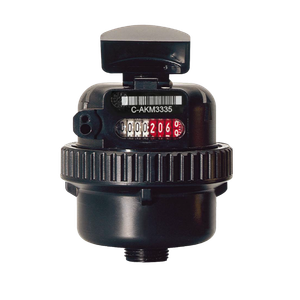

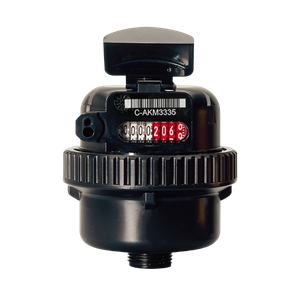

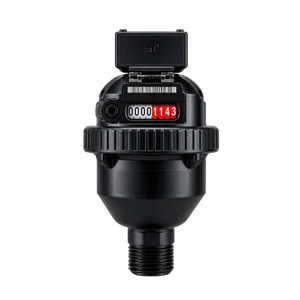

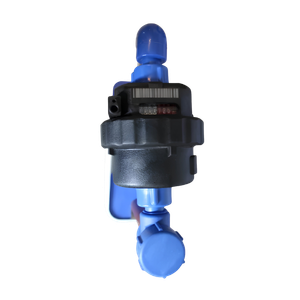

Class C plastic piston water meter for cold potable water applications up to 50 °C and 16 bar, suitable for residential metering.

Volumetric rotary piston design ensures high accuracy, including low-flow conditions, with sealed register displaying consumption in m³ and pulse output (1 pulse per 0.5 ℓ).

Approved under the Trade Metrology Act and compliant with SANS 1529-1 and ISO 4064 Class C requirements.

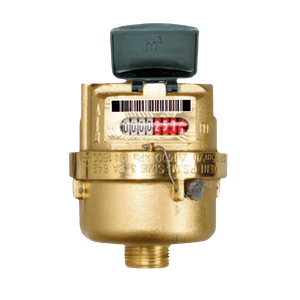

Class C brass piston water meter for cold potable water applications up to 50 °C and 16 bar, suitable for residential metering.

High-sensitivity piston measurement ensures accurate registration across a wide flow range, particularly at low flows, with sealed register, pulse-prepared output, and integrated non-return valve (size dependent).

Approved under the Trade Metrology Act and compliant with SANS 1529-1:2006 Class C, with ISO-compatible inlet and outlet threads.

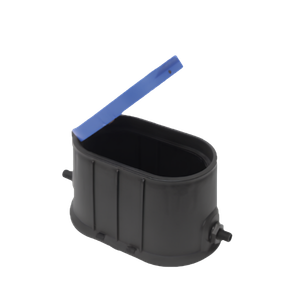

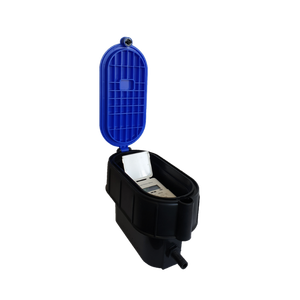

Eco Box and Base Plate
Blue Lid with Locking device. Key supplied

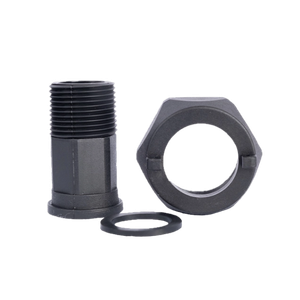

15mm Lock Nuts & 15mm Meter nuts
15mm Plastic Valve
15mm inlet and outlet male connections.
Factory pressure tested at 16 bars reducing the possibility for undetected leaks.

Made using a specially modified compound of Polypropylene Thermoplastic that is UV resistant.
Colour: Black body with a Blue Lid.

Length: ± 310mm
Width: ± 190mm
Height (Including the Lid): ± 175mm

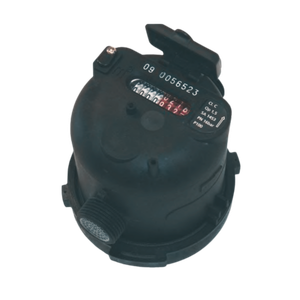

Sensus 220C – Class C 15mm Volumetric Meter – Plastic Body with a Protected Dial

The 220C meter is designed for enhanced reliability and efficiency in water networks. Its tamperproof composite body deters theft and ensures accurate readings. The lubricated register dial remains clear and unaffected by network impurities. With dual AMR options (Reed and HRI interfaces), the 220C is compatible with cost-effective AMR systems, easily retrofittable after installation.
SABS approved and complies with the new International Organisation of Legal Metrology (OIML) recommendation 49/1 3 (2006) version.

Protective Housing of Water Meters and Components
Complete with a 15mm Class C Plastic Piston Water Meter
Designed to be installed level with the ground

Equipped with a lockable lid and spring-loaded plug, opened with a specialized key.
Supplied with a NRCS and SANS 1529-1 approved meter for quality and compliance.
ISO-certified shut-off valve included.
Inlet and outlet threads are compatible with ISO metric standards.
Supports both horizontal and vertical installations for flexible mounting.
100% locally assembled.

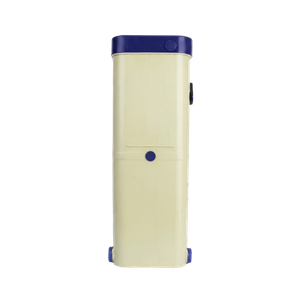

Constructed from PP/PE materials offering superior resistance to corrosion, high temperatures, and mechanical stress.
Engineered with a stable 3-dimensional structure, ensuring crush resistance for long-term use.
Corrosion-resistant, UV-stabilized lid for enhanced durability in harsh environments.
Robust design provides protection and longevity.
Theft-deterrent design as both the meter and box have no scrap value.

Standard Compliance: GBFT778 / ISO4064
Temperature Class: T30/T50/T100/T150
Warranty Period: 12 months
Resistance Load: more than 680kg
Size: 310mm L x 190mm W x 180mm H

Length: ± 310mm
Width: ± 190mm
Height (Including the Lid): ± 180mm

Measures the volume of clean, cold water passing through a pipeline.
Designed for domestic billing purposes.

Solid, robust plastic shell for extended service life.
Corrosion-resistant, UV-stabilized, fiberglass-reinforced polymer body.
Grooved rotary piston for enhanced measurement accuracy.
Clear, liquid-sealed 8-digit counter for easy reading.
Internal Non-Return Valve & Strainer to prevent backflow and debris entry.
Each meter is pulse-prepared for automated meter reading integration.
Unique serial number for traceability.

Conforms to SANS 1529-1:2006 (Class C).
Meets ISO4064: Class C Accuracy.

Lower zone (qmin up to qt): ± 5%.
Upper zone (qt up to qs): ± 2%.

Operating temperature: 2°C – 40°C.
Nominal pressure: 1600 kPa (16 Bar).
Maximum test pressure: 4800 kPa (48 Bar).

Use only plastic tailpieces/connectors to prevent damage.
Do not use hemp, soldering, or heat during installation.

Suitable for horizontal or vertical pipeline installation.
The pipeline must be flushed before installation to prevent debris damage.
Meter must remain constantly full of water during operation.

Protective Housing of Water Meters and Components
Designed to fit water meter sizes of 15mm, 20mm or 25mm.
Designed to be installed level with the ground

Equipped with a lockable lid and spring-loaded plug, opened with a specialized key.
Supplied with NRCS and SANS 1529-1 approved meters for quality and compliance.
ISO-certified shut-off valve included.
Inlet and outlet threads are compatible with ISO metric standards.
Supports both horizontal and vertical installations for flexible mounting.
100% locally assembled.

Constructed from PP/PE materials offering superior resistance to corrosion, high temperatures, and mechanical stress.
Engineered with a stable 3-dimensional structure, ensuring crush resistance for long-term use.
Corrosion-resistant, UV-stabilized lid for enhanced durability in harsh environments.
Robust design provides protection and longevity.
Theft-deterrent design as both the meter and box have no scrap value.

Standard Compliance: GBFT778 / ISO4064
Temperature Class: T30/T50/T100/T150
Warranty Period: 12 months
Resistance Load: more than 680kg

Length: ± 310mm
Width: ± 190mm
Height (Including the Lid): ± 180mm

The wall mount box is designed for housing pre-paid and post-paid water meters in both residential and commercial installations. It can be mounted on walls using four internal holes with fixing screws, providing secure and accessible placement for metering systems. This box is suitable for systems requiring leak-proof connections and reliable flow control.

Material: Made from UV-stabilized, virgin polypropylene engineering material with an approximate 3mm wall thickness, ensuring durability in outdoor environments.
Colour: Beige, with directional flow indicated on the box.
Connections and Sealing: Supplied with “O” rings and washers to ensure leak-free connections.
Optional Meter or Valve Integration: Fitted with a valve upstream of the meter or pre-paid unit for efficient flow control.
Joint System: All fittings use screwed-type joints with fusion welding for secure assembly.
Viewing Window: Equipped with a protective slider to allow easy reading of the meter, serial number, and digital readout of the pre-paid device without opening the box.
Removable Devices: The meter and pre-paid device are fitted with meter nuts, allowing for easy removal and maintenance.

Pressure Rating: The valve and fittings have a minimum pressure rating of PN16.
Leak Testing: The fully assembled unit is hydraulically tested at a pressure of 2,400 kPa for two minutes to ensure no leakages.
Security: The box is secured by a locking device that is opened with a key, providing protection against unauthorized access.
Long-Term Stability: UV-stabilized material ensures resistance to weathering and maintains performance under prolonged sun exposure.

Length: ± 410mm
Width: ± 150mm
Height (Including the Lid): ± 180mm

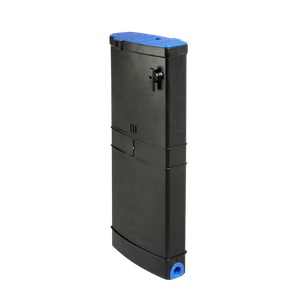

Concave above-ground polymer meter box designed for secure and accessible water metering solutions.
Includes a 15mm, 20mm, or 25mm Class C water meter, offering flexibility for various installations.
Features 20mm female BSP threaded connections for standardized plumbing compatibility.

Durable polymer construction ensures weather resistance, strength, and longevity.
SABS-approved Municipal 3-way trickle flow shut-off valve, fitted upstream of the meter for precise flow control.
Sliding couplings on the inlet and outlet allow for quick and easy meter replacement
A dual-key operated locking mechanism provides secure access while preventing tampering and unauthorized adjustments.
The sliding window cover enables easy reading of the water meter, serial number, and prepaid meter electronic display without removing the cover.
Factory pressure-tested at 24-bars, ensuring leak-free performance and reliable operation.
Theft-deterrent design with no scrap value, reducing the risk of vandalism and theft.
Simple to install with standard plumbing skills.

Length: ± 280mm
Width: ± 100mm
Height (Including the Lid): ± 710mm

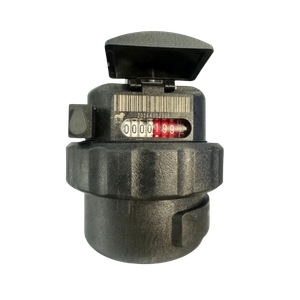

Class C plastic piston water meter for cold potable water applications up to 50 °C and 16 bar, suitable for residential metering.

Volumetric rotary piston design ensures high accuracy, including low-flow conditions, with sealed register displaying consumption in m³ and pulse output (1 pulse per 0.5 ℓ).

Approved under the Trade Metrology Act and compliant with SANS 1529-1 and ISO 4064 Class C requirements.

Above-ground lockable water meter box designed for secure and efficient metering solutions.
Includes a 15mm NRCS and SANS 1529-1:2019 approved Class C plastic water meter, municipal 5-way restrictor valve, and consumer ball valve for effective water management.
Facilitates easy meter reading and smart solution integration without requiring excavation.

Constructed from high-quality, UV-stabilized polypropylene (PP)
Extended lid design for quick access and simplified maintenance.
Dual-lock system ensures tamper-proof security
Protective sliding window shields the meter from dust, debris, and environmental damage.
Integrated middle baffle minimizes pipe vibration and prevents leaks.
Equipped with a municipal 5-way restrictor valve and an ISO-approved consumer ball valve (blue) with an optional removable handle and brass spindle for enhanced water control.
¾” female elbow with BSP threads allows for secure and standardized connections at the inlet and outlet.
Premium-grade silicone O-ring washers provide exceptional sealing performance, resisting both high and low temperatures to prevent leakage and water loss.
SANS 15874-approved PPR pipes, fusion welded for strength and durability, ensuring a leak-proof system.
Elevated fusion-welded assembly allows for convenient access to meters during servicing.
Simple to install with standard plumbing skills.

Option 1 – Fusion Welded (Not-Upgradeable)

No meter. Includes a 5-way restrictor valve, consumer valve, municipal valve, and all internal components fusion welded. Unit cannot be upgraded at a later stage.

Option 2 – Upgradeable Configuration

No meter. Includes a 5-way restrictor valve, consumer valve, municipal valve, and all internal fittings. Designed to allow future upgrade to include a 15mm domestic water meter and AMR.

The restriction operates independently to the water pressure.

Washer-type orifice options: 1 L/min or 7 L/min, enabling non-revenue water management.

An ISO-approved blue consumer ball valve with brass spindle provides full, unrestricted flow when required.

Effectively curbs water losses by the same percentage as the selected restriction setting, converting standard AGB meters into a Water Demand Management System.

Length: ± 270mm
Width: ± 120mm
Height (Including the Lid): ± 790mm
Wall Thickness: ± 4mm

Monitors and records the volume of clean, cold water passing through a pipeline.
Designed for use in residential water metering and billing systems.

High sensitivity for accurate measurement across a wide flow range
The meter body is made from a glass-reinforced, UV-stabilized polymer, tested to withstand pressures up to 4800 kPa/ 48 Bars
Liquid-sealed or dry dial register for long-lasting, clear readings
Easy-to-read 8-digit counter display with long-term clarity
Pulse prepared

Water Temperature: ≤ 50°C
Water Pressure: ≤ 1.6 MPa

Approved to SANS 1529-1:2019 Class C specifications.
Inlet and Outlet threads compatible with ISO metric sizes.

The pipeline must be flushed before installation.
The meter should remain full of water during operation.

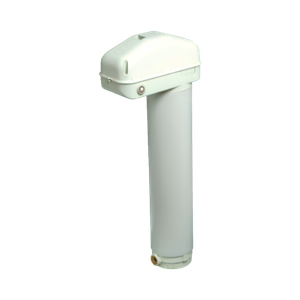

Designed for aboveground installation of 114mm and 165mm length, plastic-bodied domestic water meters (such as Multi-jets, Prepaids, Pistons, and Ultrasonics).
Can be buried up to 400mm below ground level while keeping the meter 370mm above ground for easy access.
Protects the meter with a lockable, tamperproof lid and strong construction reducing vandalism and pedestrian damage.
Includes 20mm inlet, outlet, internal piping, valves, and fittings to ensure smooth water flow.

Durable, UV-stabilized plastic shell for long-lasting performance.
Features blue lids for easy identification.
Theft-resistant design with no scrap value for the meter or box.
Secure lockable design, accessible only with a special key.
Quick meter reading, saving time and effort.
Above-ground placement makes maintenance and reading simple.
Prevents sand and mud from covering the meter.
Includes a secure ¼” turn valve that only authorized personnel can operate.
Easy-to-install flow restrictor that doesn’t require replacing fittings.
Consumer valve above ground for convenient access.
Simple to install with standard plumbing skills.
Easy service with cartridge meters, no need to remove the entire box.
Strong, leak-proof fusion-welded piping and fittings.
Factory-tested to 24 bar to ensure reliability and prevent leaks.

Length: ± 270mm
Width: ± 110mm
Height (Including the Lid): ± 770mm
Wall Thickness: ± 3mm

LAUNCHING SOON

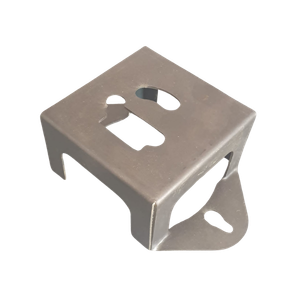

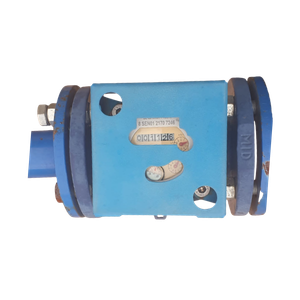

MPC-DN50; DN250 – Metal Protective Cover

Request a Quotation

LXFP - Flange Sets - Sizes 40mm – 300mm

Request a Quotation

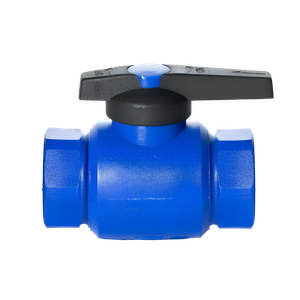

PBV-15/20/40 – Plastic Ball Valve

Request a Quotation

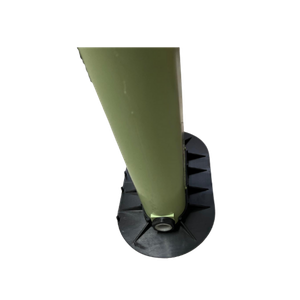

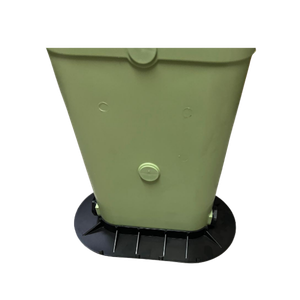

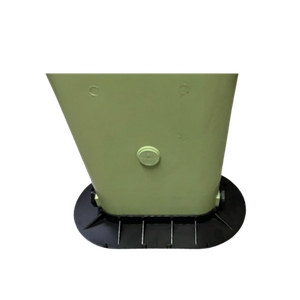

BSP-AGB-770 – Base Plate For AGB-770

Request a Quotation

BTP - Brass Tail Piece Set - Sizes 15mm - 50mm

Request a Quotation

PTP - Plastic Tail Piece Set - Sizes 15mm - 25mm

Request a Quotation

P12G01 DIN-Rail Prepayment Meter with CIU (CIU-PH04)

Request a Quotation

S12U16 – Single-Phase Split DC Meter - Smart Prepaid / Postpaid BS GPRS Electricity Meter including a Customer Interface Unit

Request a Quotation

LXDB – Dirt Box/ Bucket Strainer/ T Strainer - Sizes 40mm – 300mm

Request a Quotation

LXYS – Y-Strainer - Sizes 50mm – 300mm

Request a Quotation

LXIS - Inline Strainer - Sizes 50mm – 300mm

Request a Quotation

LXF - Woltman Combination Meters - Sizes 50mm - 200mm

Request a Quotation

LXXG – Irrigation Meter - Sizes 50mm to 300mm

Request a Quotation

LXLC-E2 - Woltman Bulk Meter - Class B - Sizes 40mm - 300mm

Request a Quotation

WP-SDC - Woltman Bulk Turbine Meter - Class C - Sizes 50mm - 200mm - MID Approved

Request a Quotation

LXC – Smart Ultrasonic Water Meter in Sizes 15mm, 20mm and 25mm

Request a Quotation

LXSZ-G - GPRS Meter Solution - Split Type - Prepaid and Postpaid Water Meter

Request a Quotation

LXSZ-L - LoRa STS Meter Solution - Split Type - Prepaid and Postpaid Water Meter

Request a Quotation

LXSG - Sizes 15mm to 20mm - Brass Multi-Jet Water Meter - Hot Water

Request a Quotation

LXSG - Sizes 15mm to 50mm - Brass Multi-Jet Water Meter - Cold Water

Request a Quotation

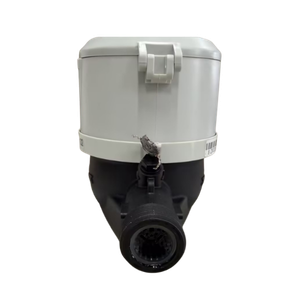

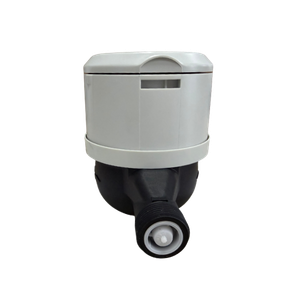

MTKD - 15mm MTKD Plastic Multi-Jet Dry Dial Water Meter

Request a Quotation

LXSG - Sizes 15mm to 50mm - Plastic Multi-Jet Water Meter - Cold Water

Request a Quotation

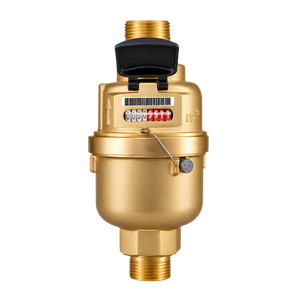

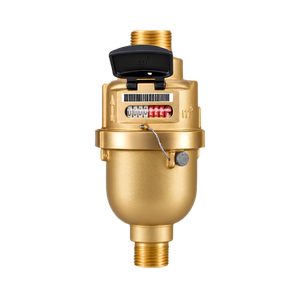

PSM - 15mm, 20mm and 25mm Brass Volumetric Rotary Piston Meter

Request a Quotation

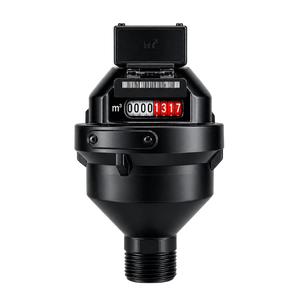

KSM - 15mm, 20mm and 25mm Plastic Volumetric Rotary Piston Meter

Request a Quotation

DRB-305 – Deep Rectangular Box

Request a Quotation

SRB-150 – Shallow Rectangular Box

Request a Quotation

LVB-260 – Large Valve Box

Request a Quotation

SVB-220 – Small Valve Box

Request a Quotation

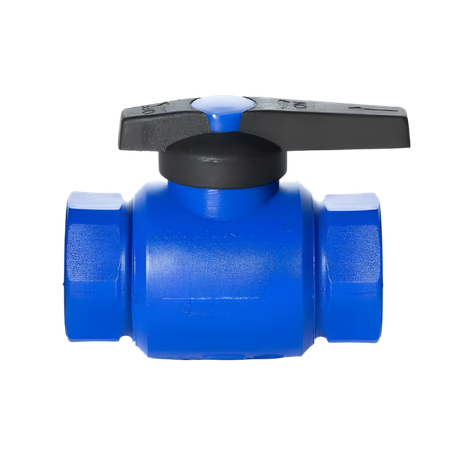

CVB - Complete Valve Box including a 2-Way or 3-Way Restrictor Ball Valve

Request a Quotation

ECO-190 - Econo Meter Box Including a Class C 15mm, 20mm or 25mm Plastic Piston Meter, or a 15mm or 20mm Brass Piston Meter

Request a Quotation

ECO-182 - Econo Meter Box including a 15mm Sensus Volumetric Piston Water Meter

Request a Quotation

ECO-181 - Eco Meter Box with a 15mm Plastic Piston Meter

Request a Quotation

ECO-180 - Eco Meter Box to fit Various Water Meters

Request a Quotation

WMB-180 - Wall Mount Box to fit Various Water Meters

Request a Quotation

AGB-710 - Above Ground Box to fit Various Water Meters

Request a Quotation

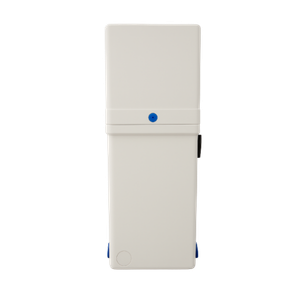

AGB-790 - Above Ground Box Including a 15mm LXH Plastic Rotary Piston Water Meter - Water Demand Management Solutions Optional

Request a Quotation

AGB-770 - Above Ground Box to fit Various Water Meters

Request a Quotation
